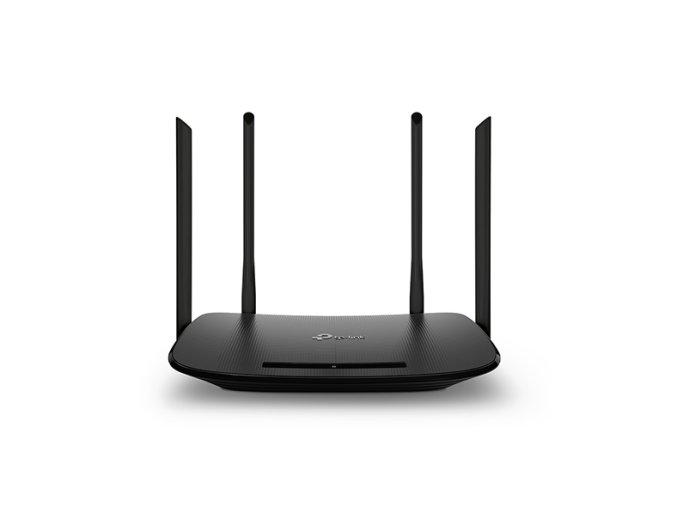

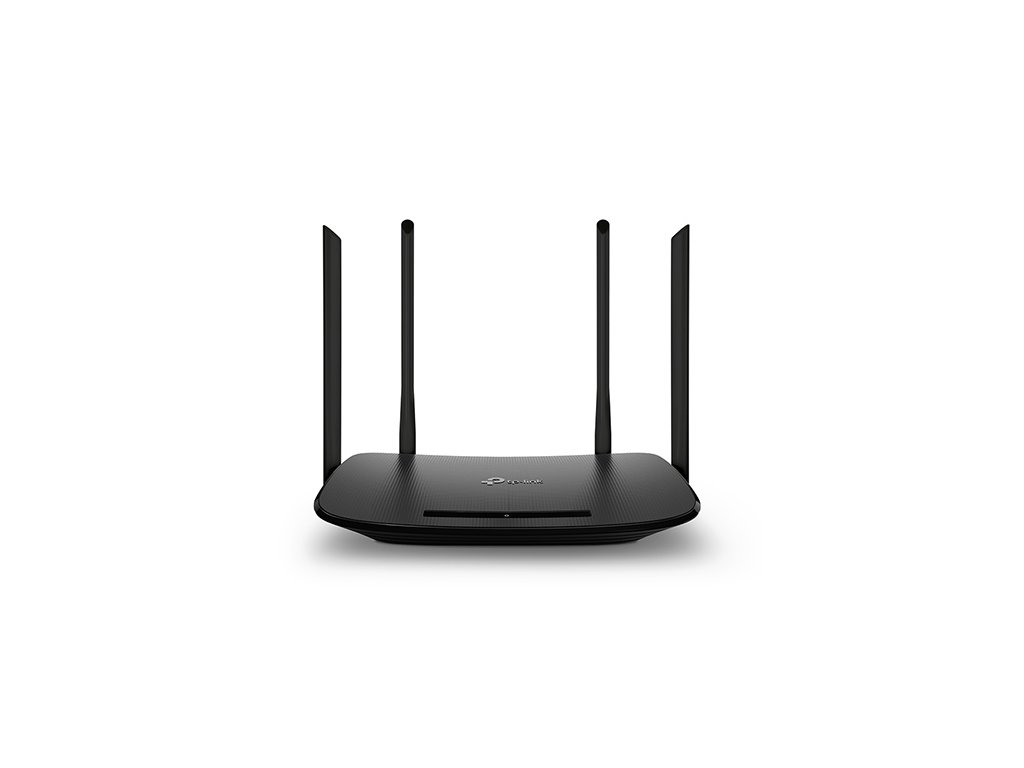

TP-Link Archer VR300 VDSL/ADSL AC1200 Modem Router, 4xFE port

AC1200 Wireless VDSL/ADSL Modem Router Archer VR300
Popis *Parental Controls: manage responsible internet access for your children *Guest Network|: provides separate access for guests while securing the home network *Firewall Security: supports DoS, SPI Firewall, IP Addressing/Domain Filter, IP/MAC Address Binding *Quality of Service: prioritizes network traffic by device or application *IPTV IGMP Proxy/Snooping: supports Bridge and Tag VLAN for smooth IPTV application *IPv6: compatible with IPv6 (Internet Protocol version 6) *Multilingual Interface: provides hassle-free configuration in six languages (EN/DE/IT/TR/RU/PO)
Technická specifikace
HARDWARE FEATURES Interface *3 10/100 RJ45 LAN Ports *1 10/100 RJ45 LAN/WAN Port *1 RJ11 Port Button *WPS Button *Power On/Off Button *Reset Button Power Supply *12VDC/1A VDSL2 Standards *ITU G.993.2, Up to 17a pro¬le (POTS) *ITU-T G.993.5 (G.vector) *ITU-T G.998.4 (G.INP) ADSL Standards *Full-rate ANSI T1.413 Issue 2, *ITU-T G.992.1(G.DMT), *ITU-T G.992.2(G.Lite), *ITU-T G.994.1 (G.hs), *ITU-T G.995.1 ADSL2 Standards *ITU-T G.992.3 (G.DMT.bis), *ITU-T G.992.4 (G.lite.bis) ADSL2+ Standards *ITU-T G.992.5 Dimensions ( W x D x H ) *385*290*76mm Antenna Type *4 fixed external antennas
WIRELESS FEATURES Wireless Standards *IEEE 802.11a/n/ac 5GHz, *IEEE 802.11b/g/n 2.4GHz Wireless Speeds *867Mbps at 5GHz *300Mbps at 2.4GHz Transmit Power *2.4GHz <20dBm(EIRP) *5GHz <23dBm(EIRP) Wireless Functions *Access Point / Wireless Bridge, Wireless Enable\Disable, SSID Broadcast Enable\Disable Wireless Security *WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions, QSS(WPS)
SOFTWARE FEATURES Quality of Service *ATM QoS, Bandwidth Control Security *NAT Firewall, Access Control, IP and MAC Address Binding Operating Modes *VDSL/ADSL Modem Router, Wireless Router Management *Web Based Con¬guration(HTTP), Remote management, command Line Interface, SSL for TR-069, SNMP v1/2c, Web Based Firmware *Upgrade, Diagnostic Tools DHCP *Server, Client, DHCP Client List, Address Reservation, DHCP Relay Port Forwarding *Virtual Server, Port Triggering, DMZ, ALG, UPnP Dynamic DNS *DynDns, NO-IP VPN Pass-Through *PPTP, L2TP, IPSec Passthrough Protocols *Supports IPv4 and IPv6 ATM/PPP Protocols *ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), MER\IPoE (RFC 1483 Routed), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs Advanced Functions *Parental Control, Network Address Translation(NAT), *Port Mapping(Grouping), Static Routing, RIP v1/v2(optional), DNS Relay, *DDNS, IGMP V1/V2/V3 Guest Network *2.4GHz guest network, 5GHz guest network
OTHERS Certification CE, RoHS, RCM Package Contents · *AC1200 Wireless VDSL/ADSL Modem Router Archer VR300 *External Splitter *RJ11 DSL Cable *RJ45 Ethernet Cable *Power Adapter *Quick Installation Guide System Requirements *Microsoft Windows XP/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux *Internet Explorer, Firefox, Chrome, Safari or other Java-enabled browser *Subscription with an Internet Service Provider (for Internet access) Environment *Operating Temperature: 0?~40? (32? ~104?) *Storage Temperature: -40?~70? (-40? ~158?) *Operating Humidity: 10%~90% non-condensing *Storage Humidity: 5%~90% non-condensing
