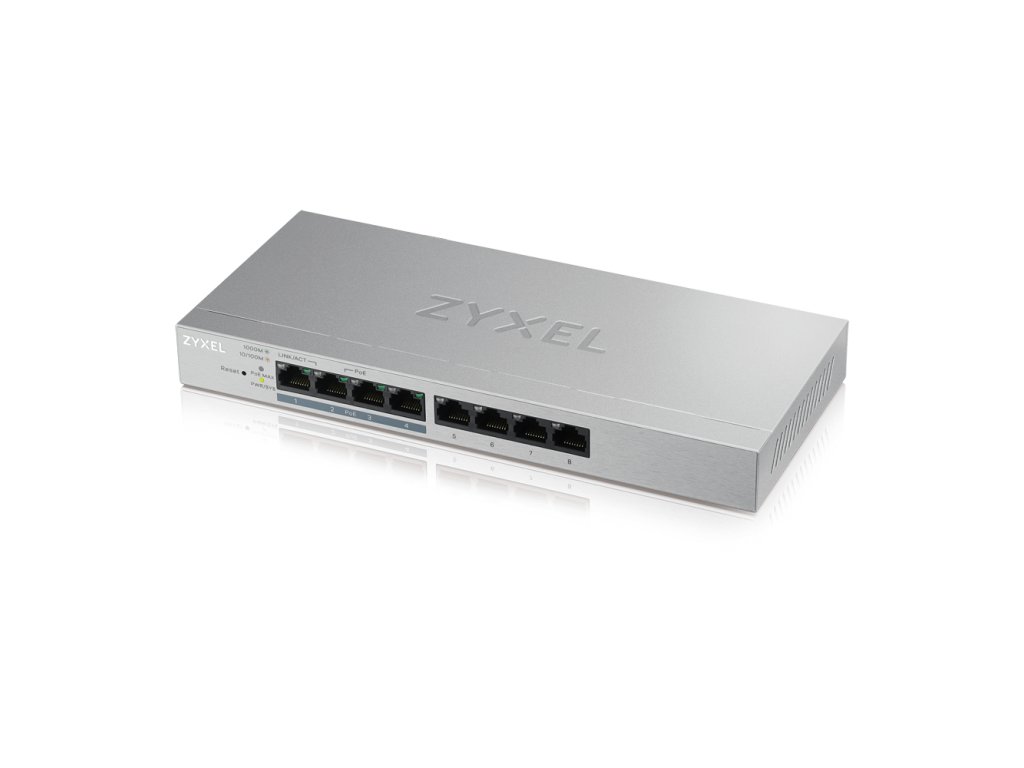

ZyXEL 8xGb 4xPOE fanless desktop sw. GS1200-8HPV2

GS1200-8HPV2-EU0101F8-port Desktop Gigabit Web Smart switch: 8x Gigabit metal, 4x PoE (802.3at, 30W), PoE Power budget 60W, IPv6, 802.3az (Green), Easy set up wizard, fanless
OVERVIEW
Smart features The ZyXEL GS1200 series Web Managed PoE Gigabit Switch provides simple control for better manageability. Unlike other advanced but complex managed switches, the ZyXEL GS1200 series is suitable for most users and provides an affordable solution with fundamental features including PoE, VLAN, QoS, IGMP snooping v1/v2 and v3 compatibility.
PoE support The ZyXEL GS1200-5HP and GS1200-8HPV2 deliver PoE capabilities of IEEE 802.3at (30 watts/per port with total PoE power budget 60 watts) to supply power to PoE-capable network devices such as wireless APs, IP cameras and IP phones. Web GUI management enables you to monitor power status of each port and/or to reboot the network devices.
Easy Configuration The ZyXEL GS1200 series does not require any additional software. It is more visualized with an easy, friendly and intuitive Web GUI that helps configuration tasks to be completed in just simple clicks. It is much easier for small office users.
Energy Saving For IEEE 802.3az The ZyXEL GS1200 series built-in IEEE 802.3az Energy Efficient Ethernet (EEE) function automatically detects network traffics and adjusts power consumptions dynamically to reduce power consumption during the low link utilization periods.
TECHNICAL SPECS
Model
GS1200-8HP *8-port GbE Web Managed PoE Switch
Chipset
Main chip *GS1200-8HPV2 : Broadcom BCM53128KQLEG
CPU *IC Plus IP210W
Port Density
Total port count *GS1200-8HPV2 : 8
1000BASE-T *GS1200-8HPV2 : 4
1000BASE-T PoE *4
Performance
Switching capacity *GS1200-8HPV2 : 16 Gbps
Packet buffer *GS1200-8HPV2 : 192 KB
MAC address *4K
Jumbo frame *9 KB
LED
Power *Yes
Per port *Yes
PoE power status *Yes (Max)
Power
Input voltage *55 V/1.3 A
Power supply *External
Maximum power consumption (watt) *72
PoE power budget (watt) *60
Physical Specifications
Dimensions (WxDxH) (mm) *GS1200-8HPV2 : 240 x 105 x 26
Weight (kg) *GS1200-8HPV2 : 0.65
Environmental Specifications
Operating temperature *0°C to 40°C
Operating humidity *10% to 90% (non-condensing)
Storage temperature *-40°C to 70°C
Storage temperature *10% to 90% (non-condensing)
Standard Compliance
IEEE 802.3u 100BASE-TX Ethernet *Yes
IEEE 802.3ab 1000BASE-T Ethernet *Yes
IEEE 802.3az EEE support *Yes
IEEE 802.3x flow control *Yes
IEEE 802.3z 1000BASE-X *Yes
IEEE 802.1p CoS *Yes
IEEE 802.3af PoE *Yes
IEEE 802.3at PoE Plus *Yes (30W per port)
Auto MDI/MDI-X *Yes
IEEE802.1Q VLAN tagging *Yes
Features
Web-based management *Yes
System password *Yes
Port-based VLAN *Yes
VLAN (# Supported) *GS1200-8HPV2 : 8
Port-based QoS *Yes
802.1p CoS *Yes
Broadcast storm control *Yes
Loop detection *GS1200-8HPV2 : Yes
Weighted Round Robin (WRR) priority QoS *Yes
IGMP snooping v1/v2/and v3 compatible *Yes
Supported multicast groups *20
Firmware update *Yes
Certification
EMC *CE, FCC, C-Tick, Class A : Yes
Safety *LVD EN60950-1 : Yes *RoHS compliant : Yes
