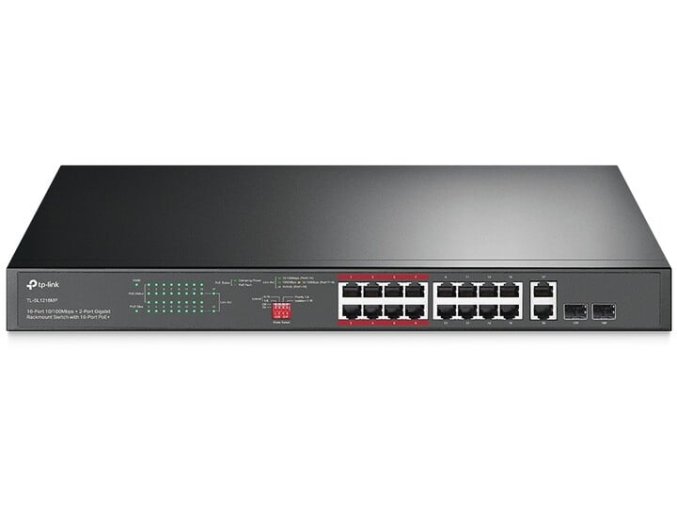

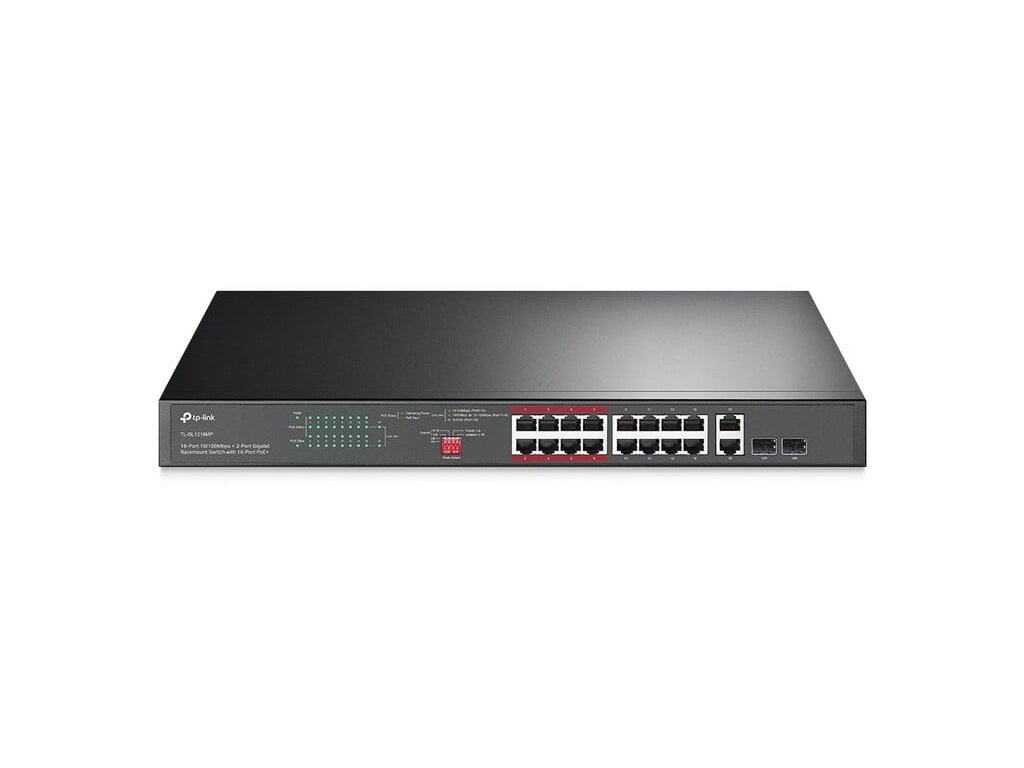

TP-Link TL-SL1218MP ver.2 16xFE 2xGb 2xSFP Unmanaged CCTV Switch 150W POE+
Popis
16-portový 10/100Mb/s + 2-portový gigabitový Unmanaged PoE Switch
*16 portů RJ45 PoE + 10/100Mb/s, 2 gigabitové porty RJ45 a 2 kombinované gigabitové SFP sloty.
*Přenos dat a napájení až do vzdálenosti 250 m v režimu prodloužení speciálně navrženého pro dohledový systém.
*Prioritní režim pro port 1-8, který zaručuje kvalitu citlivých aplikací, jako je například video monitor.
*Vysoký výkon PoE napájení, až 30 W pro každý PoE port a 194 W pro všechny PoE porty.
*Snadné použití bez nutnosti konfigurace a instalace.
*Tento switch není kompatibilní s produkty EAP225 v3 a EAP225-Outdoor v3
Technické parametry
HARDWARE FEATURES *Interface: -16 PoE+ 10/100Mbps RJ45 Ports -2 10/100/1000Mbps RJ45 Ports -2 Combo Gigabit SFP Slots *Network Media: -10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) -EIA/TIA-568 100? STP (maximum 100m) -100BASE-TX: UTP category 5, 5e cable (maximum 100m) -EIA/TIA-568 100? STP (maximum 100m) -1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) -EIA/TIA-568 100? STP (maximum 100m) -1000BASE-X MMF, SMF *Fan Quantity: 2 Fans *Power Supply: 100-240V AC, 50/60 Hz *Backup Bandwidth: 7.2 Gbps *PoE+ Ports(RJ45): -Standard: 802.3at/802.3af compliant -PoE Ports: Port1- Port16 -PoE Power Budget: 192W *Mac Address Table: 8K *Dimensions ( W x D x H ): 17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm) *Max Power Consumption: -18.73 W (220/50Hz. no PD connected) -217.22 W (220/50Hz. with 192W PD connected) *Max Heat Dissipation: -63.89 BTU/h (no PD connected) -741.15 BTU/h (with 192W PD connected)
SOFTWARE FEATURES *Advanced Features: -Compatible With IEEE 802.3at/af Compliant PDs -Port Priority Mode -Extend Mode (Up to 250m PoE power supply and data transmission) -Mac Address Auto-Learning And Auto-Aging -IEEE802.3x Flow Control *Transmission Method: Store-And-Forward
OTHERS *Certification: CE, FCC, RoHS *Package Contents: TL-SL1218MP, Power Cable, Installation Guide, Two mounting brackets and the fittings *Environment: -Operating Temperature: 0°C~40°C (32°F~104°F) -Storage Temperature: -40°C~70°C (-40°F~158°F) -Operating Humidity: 10% ~ 90% non-condensing -Storage Humidity: 5%~90% non-condensing
Technické parametry
HARDWARE FEATURES *Interface: -16 PoE+ 10/100Mbps RJ45 Ports -2 10/100/1000Mbps RJ45 Ports -2 Combo Gigabit SFP Slots *Network Media: -10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) -EIA/TIA-568 100? STP (maximum 100m) -100BASE-TX: UTP category 5, 5e cable (maximum 100m) -EIA/TIA-568 100? STP (maximum 100m) -1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) -EIA/TIA-568 100? STP (maximum 100m) -1000BASE-X MMF, SMF *Fan Quantity: 2 Fans *Power Supply: 100-240V AC, 50/60 Hz *Backup Bandwidth: 7.2 Gbps *PoE+ Ports(RJ45): -Standard: 802.3at/802.3af compliant -PoE Ports: Port1- Port16 -PoE Power Budget: 192W *Mac Address Table: 8K *Dimensions ( W x D x H ): 17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm) *Max Power Consumption: -18.73 W (220/50Hz. no PD connected) -217.22 W (220/50Hz. with 192W PD connected) *Max Heat Dissipation: -63.89 BTU/h (no PD connected) -741.15 BTU/h (with 192W PD connected)
SOFTWARE FEATURES *Advanced Features: -Compatible With IEEE 802.3at/af Compliant PDs -Port Priority Mode -Extend Mode (Up to 250m PoE power supply and data transmission) -Mac Address Auto-Learning And Auto-Aging -IEEE802.3x Flow Control *Transmission Method: Store-And-Forward
OTHERS *Certification: CE, FCC, RoHS *Package Contents: TL-SL1218MP, Power Cable, Installation Guide, Two mounting brackets and the fittings *Environment: -Operating Temperature: 0°C~40°C (32°F~104°F) -Storage Temperature: -40°C~70°C (-40°F~158°F) -Operating Humidity: 10% ~ 90% non-condensing -Storage Humidity: 5%~90% non-condensing
