Popis

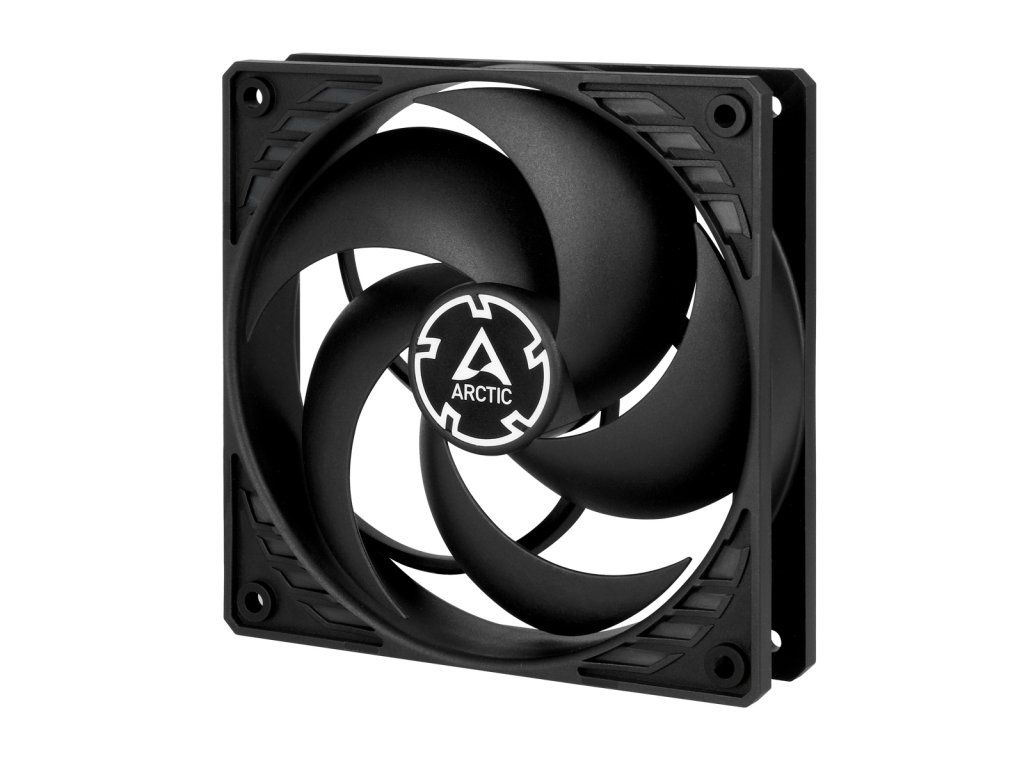

Nová řada P12 ventilátorů ARCTIC je navržena pro maximální statický tlak. Verze P12 Silent je 120x120x25mm ventilátor s otáčkami 1050RPM a vzduchovým transferem 24.1 CFM (40.95 m3/h). Neuvěřitelně tichý 0.08 Sone (@ 1 050 RPM)
Optimised for Static Pressure - During the development of the new P12 Silent, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 Silent is particularly suitable for use on heatsinks and radiators.
High Quality Bearing - Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.
Virtually Silent Motor - At low fan speed, the motor is the main source of unwanted noise. A motor developed in Germany with an enhanced bearing reduces friction and noise.
Performance
Fan: 120 mm, 1 050 RPM (@12 V DC)
Air Flow: 24.1 CFM (40.95 m3/h)
Noise Level: 0.08 Sone (@ 1 050 RPM)
Electrical Characteristics
Typical Voltage: + 12 V DC
Start-up Voltage: 4.8 V DC
Cable Length: 400 mm
Voltage Current 12 V DC (Norminal) 0.09 A
Connection
Motherboard: + 12 V DC 3-pin connector
