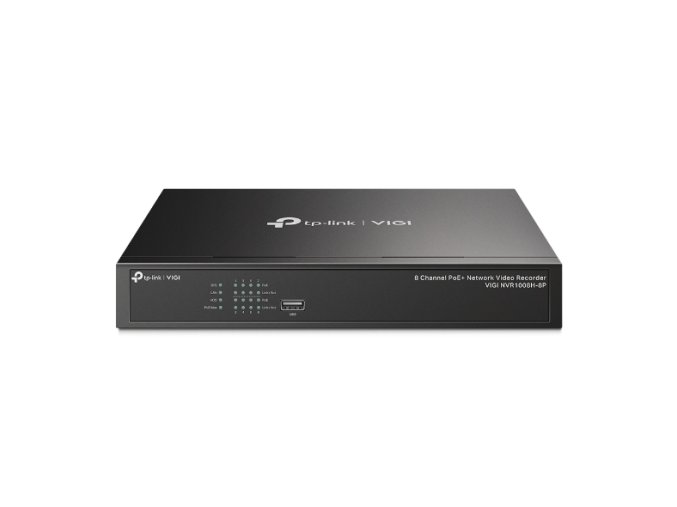

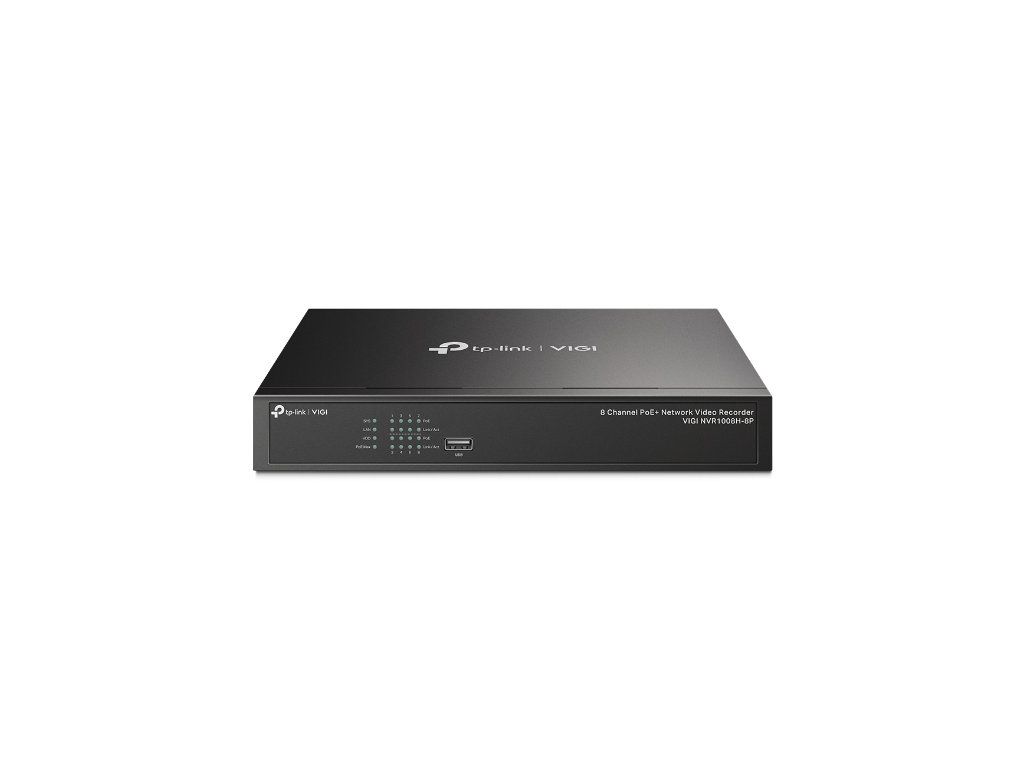

VIGI NVR1008H-8P 8 Channel PoE Network Video Rec.

VIGI NVR1008H-8P

---

Shows more details with up to 8MP resolution for one channel and 16MP decoding capacity in total for all channels.
Features 8× 10/100Mbps PoE+ ports, the NVR supports up to 30 W on each PoE+ port. Designed to use a single Ethernet cable for both data and power transmission, it offers flexible installation to fit in various surveillance scenarios for small businesses, such as groceries, warehouses, restaurants, and financial institutions.
Replay the feed from up to 8 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.
The dedicated VIGI app, web UI, and VIGI Security Manager enable remote monitoring, providing ease and convenience.
Choose the suitable installation method by simply housing your NVR on a rack, or placing it on or under a desk.
With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.

---

Features *4K HDMI Video Output & 16MP Decoding Capacity *Simplified Deployment with PoE+ *8-Channel Simultaneous Playback *H.265+ *ONVIF Ensures Compatibility *Plug & Play *24/7 Continuous Recording *Remote Monitoring *Flexible Installation *Two-Way Audio

---

Specifications
NETWORK Protocol *TCP/IP, DHCP, DNS, NTP, UPnP Incoming Bandwith *80 Mbps Outgoing Bandwidth *60 Mbps
GENERAL Package Contents *VIGI Network Video Recorder *Power Adapter *HDD Screws *Mouse *Quick Installation Guide Operating Temperature *-10–55 °C Dimensions( W X D X H ) *294 × 180 × 44 mm PoE *Standard: 802.3af/at *PoE Ports: Ports 1-8 *PoE Budget: 53 W External Power Supply *53.5V DC/1.31 A Power Consumption *2.38 W (without disk) *12.94 W (with disk)
VIDEO/IMAGE Video Input *8-Channel IP Video Input, up to 8 MP Resolution Recording Resolution *8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF HDMI Output Resolution *1 Channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz, *1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1024x768/60Hz, 1280x720/60Hz VGA Output Resolution *1 Channel, Resolution: 1920x1080/60Hz,1680x1050/60Hz, *1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz,
DECODING Decoding Format *H.265+/H.265/ H.264+/H.264 Live View/Playback Resolution *8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF Synchronous Playback *8 Channel Capability *2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP
HARD DISK SATA *1 SATA Interface Capacity *Up to 10 TB
INTERFACES Network Interface *1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface USB Interface *2× USB 2.0
