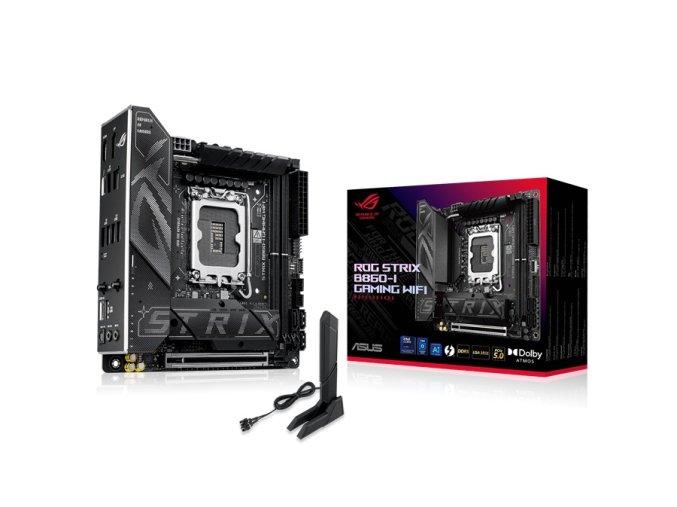

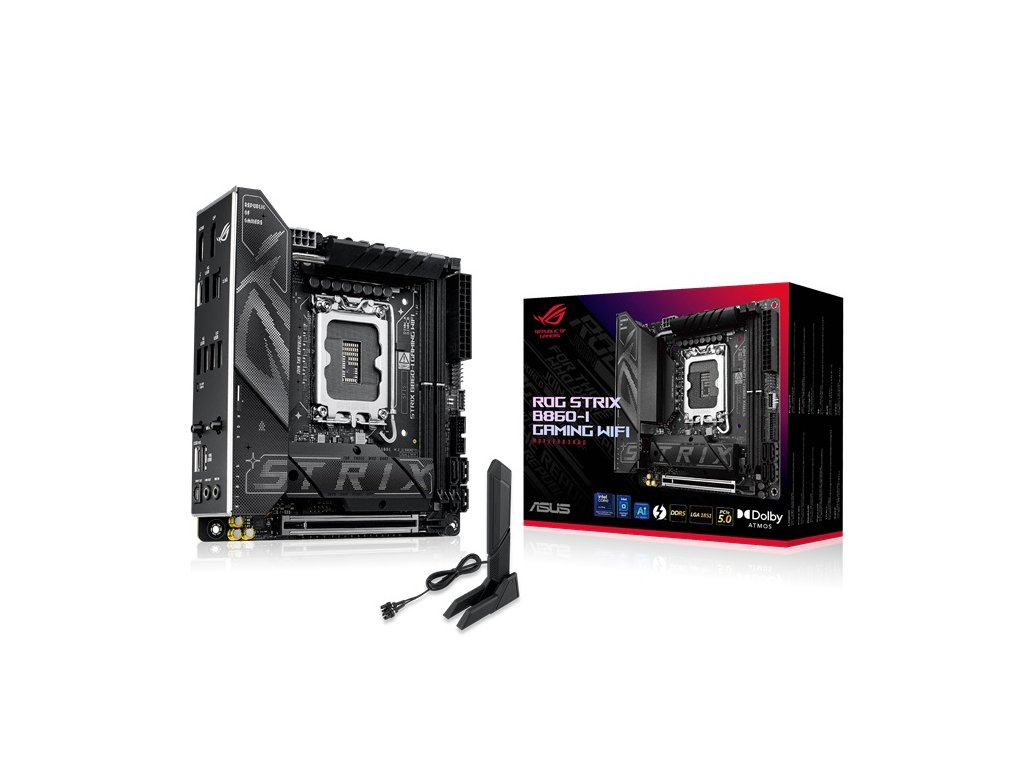

ASUS ROG STRIX B860-I GAMING WIFI

ASUS ROG STRIX B860-I GAMING WIFI * Mini ITX Form Factor
CPU: Support Intel® Core™ Ultra Processors (Series 2), Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset: Intel® B860 Chipset
Paměť: 2 x sloty DIMM, max. 96 GB, DDR5 - Podporuje až 9066+MT/s (OC), Non-ECC Un-buffered ,Clocked Unbuffered DIMM (CUDIMM) *Dvoukanálová paměťová architektura *DIMM Fit *Podporuje paměťový modul Intel® Extreme Memory Profile (XMP) *ASUS Enhanced Memory Profile III (AEMPIII)
Grafické porty: *1 x DisplayPort *1 x HDMI™ port *1 x Intel® Thunderbolt™ 4 supports DisplayPort and Thunderbolt™ video outputs
Rozšiřující sloty: Intel® Core™ Ultra Processors (Series 2) *1 x PCIe 5.0 x16 slot
Úložný prostor: Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel® Core™ Ultra Processors (Series 2) *M.2_1 slot (Key M), type 2260/2280 (supports PCIe 5.0 x4 mode) Intel® B860 Chipset** *M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) *4 x SATA 6Gb/s ports
Ethernet: *Wi-Fi 7 *2x2 Wi-Fi 7 (802.11be) *Supports 2.4/5/6GHz frequency band *Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. *Bluetooth® v5.4
Připojení a Bluetooth:
USB: Zadní USB (Total 7 ports) *1 x Thunderbolt™ 4 port (1 x USB Type-C®) *1 x USB 20Gbps port (1 x USB Type-C®) *1 x USB 10Gbps ports (1 x Type-A) *3 x USB 5Gbps ports (3 x Type-A) *2 x USB 2.0 ports (2 x Type-A) Přední USB (Total 7 ports) *1 x USB 10Gbps connector (supports USB Type-C®) *1 x USB 5Gbps header supports 2 additional USB 5Gbps ports *1 x USB 2.0 header supports 2 additional USB 2.0 ports
Audio: Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC *SupremeFX Shielding Technology *Savitech SV3H712 AMP *Rear optical S/PDIF out port *Premium audio capacitors *Dedicated audio PCB layers
Vstupy/výstupy zadního panelu: *1 x Thunderbolt™ 4 port (1 x USB Type-C®) *1 x USB 20Gbps port (1 x USB Type-C®) *1 x USB 10Gbps ports (1 x Type-A) *3 x USB 5Gbps ports (3 x Type-A) *2 x USB 2.0 ports (2 x Type-A) *1 x DisplayPort *1 x HDMI™ port *1 x Wi-Fi module *1 x Intel® 2.5Gb Ethernet port *2 x Audio jacks *1 x Optical S/PDIF out port *1 x Clear CMOS button
Interní vstupy/výstupy: Ventilátory a chlazení: *1 x 4-pin CPU Fan header *1 x 4-pin AIO Pump header *1 x 4-pin Chassis Fan headers Napájení: *1 x 24-pin Main Power connector *1 x 8-pin +12V CPU Power connector Úložiště: *2 x M.2 slots (Key M) *4 x SATA 6Gb/s ports USB: *1 x USB 10Gbps connector (supports USB Type-C®) *1 x USB 5Gbps header supports 2 additional USB 5Gbps ports *1 x USB 2.0 header supports 2 additional USB 2.0 ports Různé: *2 x Addressable Gen2 headers *1 x Front Panel Audio header (F_AUDIO) *1 x 10-1 pin Front System Panel header *1 x Thermal Sensor header
Příslušenství: Kabely: *2 x SATA 6Gb/s cables Různé: *1 x ASUS WiFi Q-Antenna *1 x Cable ties package *2 x Screw packages for M.2 SSD *1 x Fan Bracket *1 x ROG key chain *1 x ROG Strix stickers Dokumenty: *1 x Quick start guide
