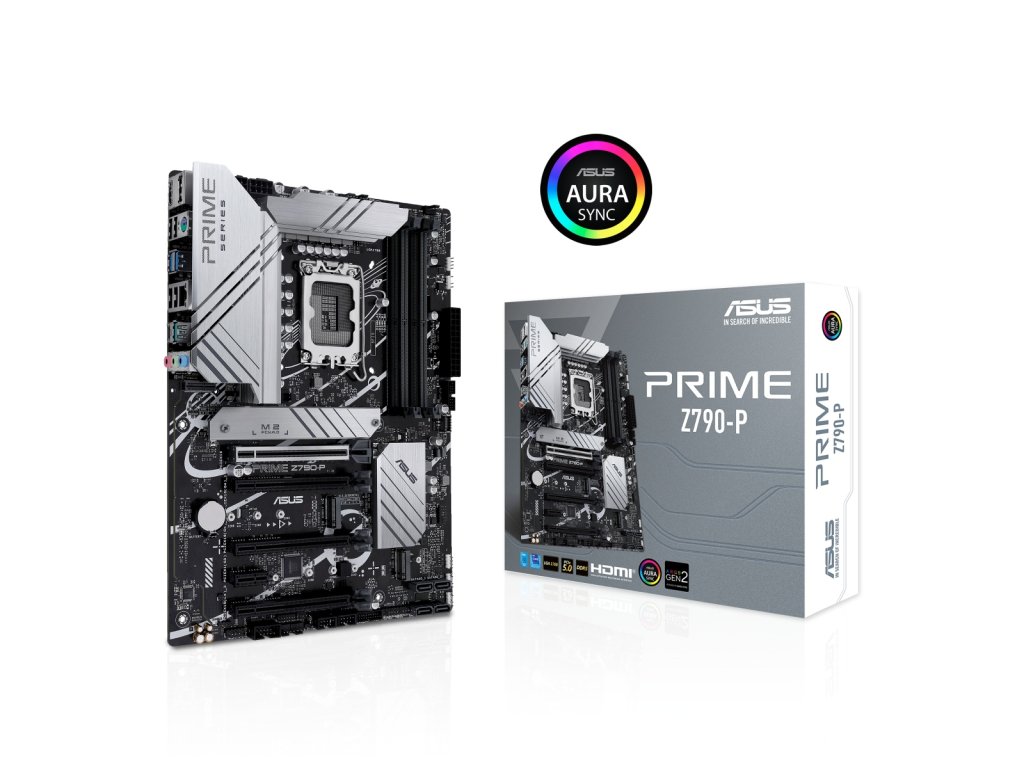

ASUS PRIME Z790-P/LGA 1700/ATX

Chipset: Intel Z790
Rozměrový formát: ATX
Podpora pro procesory: 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors
Pozice na paměti: 4 x DIMM
Podpora pro paměti: *4 x DIMM *Max. 128GB *DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory *Dual Channel Memory Architecture *Supports Intel Extreme Memory Profile (XMP) *OptiMem II
Max. velikost operační paměti: 128 GB
Grafické výstupy: ne (1x DisplayPort + 1x HDMI port)
Zvuková karta: *Realtek 7.1 Surround Sound High Definition Audio CODEC
Síťová karta: *1 x Realtek 2.5Gb Ethernet
Rozšiřujicí sloty: Intel 13th & 12th Gen Processors *1 x PCIe 5.0 x16 slot Intel Z790 Chipset *3 x PCIe 4.0 x16 slots (support x4 mode) *1 x PCIe 3.0 x1 slot
RAID řadič: PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10
SATA: *4 x SATA 6Gb/s ports
M.2: Intel 13th & 12th Gen Processors *M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel Z790 Chipset *M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) *M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
USB: zadní USB - celkem 8, přední USB - celkem 9 ZADNÍ *1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) *1 x USB 3.2 Gen 2 port (1 x Type-A) *2 x USB 3.2 Gen 1 ports (2 x Type-A) *4 x USB 2.0 ports (4 x Type-A) PŘEDNÍ *1 x USB 3.2 Gen 2 connector (supports USB Type-C) *2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports *2 x USB 2.0 headers support 4 additional USB 2.0 ports
Interní porty: Fan and Cooling related *1 x 4-pin CPU Fan header *1 x 4-pin CPU OPT Fan header *1 x 4-pin AIO Pump header *3 x 4-pin Chassis Fan headers Power related *1 x 24-pin Main Power connector *1 x 8-pin +12V Power connector *1 x 4-pin +12V Power connector Storage related *3 x M.2 slots (Key M) *4 x SATA 6Gb/s ports USB *1 x USB 3.2 Gen 2 connector (supports USB Type-C) *2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports *2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous *3 x Addressable Gen 2 headers *2 x Aura RGB headers *1 x Clear CMOS header *1 x COM Port header *1 x Front Panel Audio header (AAFP) *1 x S/PDIF Out header *1 x SPI TPM header (14-1pin) *1 x 20-5pin System Panel header *1 x Thunderbolt (USB4) Header
Externí porty: *1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) *1 x USB 3.2 Gen 2 port (1 x Type-A) *2 x USB 3.2 Gen 1 ports (2 x Type-A) *4 x USB 2.0 ports (4 x Type-A) *1 x DisplayPort *1 x HDMI port *1 x Vertical M.2 slot (Key E) *1 x Realtek 2.5Gb Ethernet port *3 x Audio jacks *1 x PS/2 Keyboard/Mouse combo port
BIOS: 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
