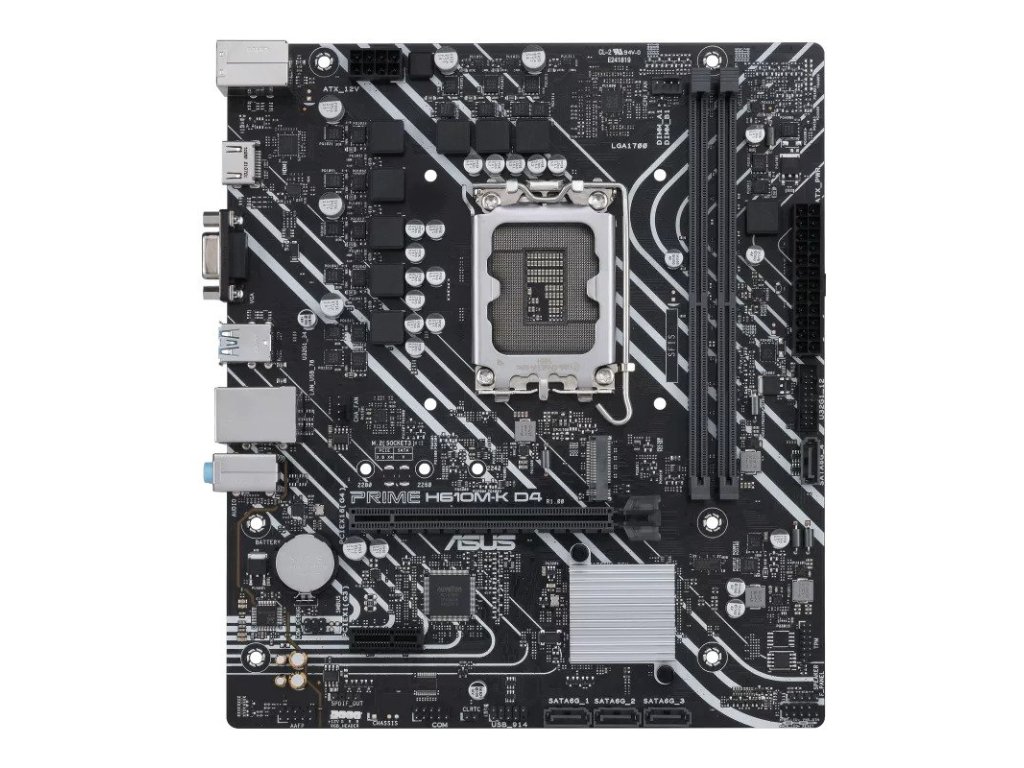

ASUS PRIME H610M-K D4/LGA 1700/mATX

Chipset: Intel H610 Chipset
Rozměrový formát: mATX ( 23.4 cm x 20.3 cm )
Podpora pro procesory: 12th Gen Intel Core, Pentium Gold and Celeron Processors
Patice procesoru: LGA1700
Pozice na paměti: 2 x DIMM, Dual Channel Memory Architecture
Podpora pro paměti: DDR4 3200/3000/2933/2800/2666/2400/2133 MHz
Max.velikost operační paměti: 64 GB
Podpora pro paměti typu: XMP
Grafické výstupy: (na základě procesoru) *1 x D-Sub port *1 x HDMI port
Zvuková karta: Realtek 7.1 Surround Sound High Definition Audio CODEC
Síťová karta: 1 x Realtek 1Gb Ethernet
Rozšiřující sloty: *1 x PCIe 4.0 x16 slot *1 x PCIe 3.0 x1 slot
SATA: 4 x SATA 6Gb/s ports
M.2: 1 x M.2 slot
USB: *
Interní: *1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports *1 x USB 2.0 header supports additional 2 USB 2.0 ports *
Externí: *2 x USB 3.2 Gen 1 ports (2 x Type-A) *4 x USB 2.0 ports (4 x Type-A)
Interní porty: *
Fan and Cooling related *1 x 4-pin CPU Fan header *1 x 4-pin Chassis Fan header *
Power related *1 x 24-pin Main Power connector *1 x 8-pin +12V Power connector *
Storage related *1 x M.2 slot (Key M) *4 x SATA 6Gb/s ports *
USB *1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports *1 x USB 2.0 header supports additional 2 USB 2.0 ports *
Miscellaneous *1 x RGB header *1 x Clear CMOS header *1 x COM Port header *1 x Front Panel Audio header (AAFP) *1 x S/PDIF Out header *1 x Speaker header *1 x SPI TPM header (14-1pin) *1 x 10-1 pin System Panel header
Externí porty: *2 x USB 3.2 Gen 1 ports (2 x Type-A) *4 x USB 2.0 ports (4 x Type-A) *1 x D-Sub port *1 x HDMI port *1 x Realtek 1Gb Ethernet port *3 x Audio jacks *1 x PS/2 Keyboard/Mouse combo port
BIOS: UEFI AMI BIOS, 128 Mb Flash ROM
