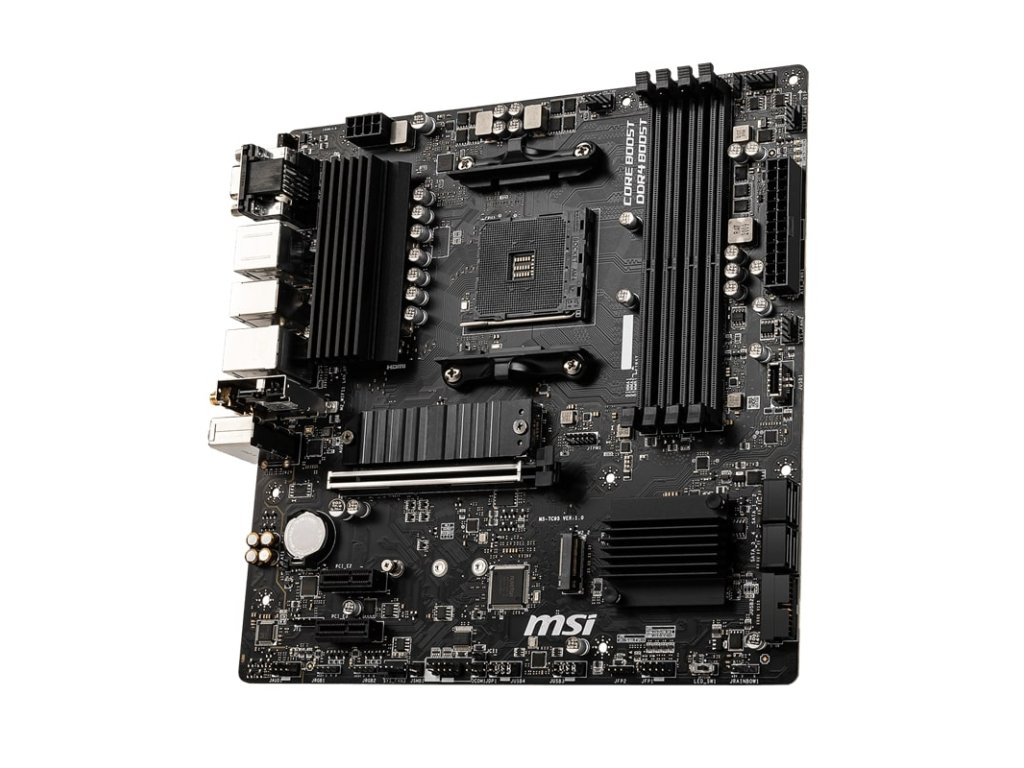

MSI B550M PRO-VDH WIFI/AM4/mATX

Chipset: AMD B550
Rozměrový formát: Formát Micro-ATX (244 mm x 244 mm)
Podpora pro procesory: 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update
Patice procesoru: AM4
Pozice na paměti: 4x DDR4
Podpora pro paměti: *Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC *Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE
Max.velikost operační paměti: 128 GB
Podpora pro paměti typu: DDR4 *Dual channel memory architecture *Supports non-ECC UDIMM memory *Supports ECC UDIMM memory *Supports un-buffered memory
Grafické výstupy: na základě procesoru *1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz *1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz *1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz
Zvuková karta: *Realtek® ALC892 Codec
Síťová karta: *1x Realtek® 8111HN Gigabit LAN controller *Intel® Wireless-AC 3168 *Bluetooth 4.2
RAID řadič: *Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices *Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Rozšiřující sloty: *1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) *2x PCIe 3.0 x1 slots
SATA: *4x SATA 6Gb/s ports
M.2: *2x M.2 slots (Key M)
USB: *
zadní USB porty ( celkem 6 ) *2x USB 2.0 ports *4x USB 3.2 Gen 1 5Gbps Type-A ports *
přední USB porty ( celkem 7 ) *1x USB 3.2 Gen 1 5Gbps Type-C port *2x USB 3.2 Gen 1 5Gbps ports *4x USB 2.0 ports
Interní porty: *1x 24-pin ATX main power connector *1x 8-pin ATX 12V power connector *4x SATA 6Gb/s connectors *2x M.2 slots (M-Key) *1x USB 3.2 Gen 1 5Gbps Type-C port *1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) *2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) *1x 4-pin CPU fan connector *1x 4-pin water-pump fan connector *3x 4-pin system fan connectors *1x Front panel audio connector *2x System panel connectors *1x Serial port connector *1x Chassis Intrusion connector *2x 4-pin RGB LED connectors *2x 3-pin RAINBOW LED connectors *1x TPM module connector *1x Clear CMOS jumper
Externí porty: *VGA *PS/2 Keyboard / Mouse *1x LAN *Flash BIOS Button *DisplayPort *HDMI *2x USB 2.0 *4x USB 3.2 Gen 1 5Gbps Type-A *Wi-Fi Antenna connectors *3x Audio jacks
Stránka výrobce: https://www.msi.com/Motherboard/B550M-PRO-VDH-WIFI
