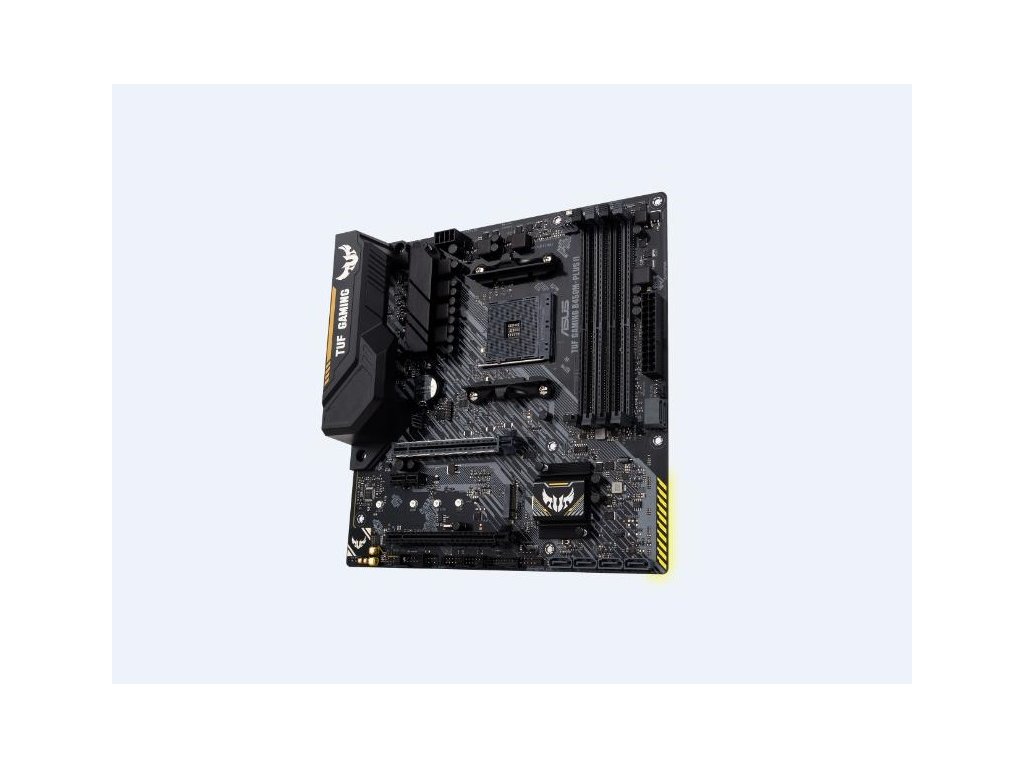

ASUS TUF GAMING B450M-PLUS II/AM4/mATX

Chipset: AMD B450
Rozměrový formát: mATX Form Factor (244 mm x 244 mm)
Podpora pro procesory: 3rd/2nd/1st Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics Processors
Patice procesoru: AM4
Pozice na paměti: 4x DDR4 DIMM
Podpora pro paměti: 4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3533(O.C)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
Max.velikost operační paměti: 128 GB
Podpora pro paměti typu: DDR4 *Dual Channel Memory Architecture *ECC Memory (ECC mode) support varies by CPU
Grafické výstupy: *Integrated Graphics Processor (na základě procesorů 2. a 1. generace AMD s Radeon Grpahics)
Multi GPU: AMD 2-Way CrossFireX Technology
Zvuková karta: *Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC
Síťová karta: *Realtek RTL8111H 1Gb Ethernet
Rozšiřující sloty: *
3rd/2nd/1st Gen AMD Ryzen™ Processors *1x PCIe 3.0/2.0 x16 (x16 mode) *
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors *1x PCIe 3.0/2.0 x16 (x8 mode) *
Athlon™ with Radeon™ Vega Graphics Processors *1x PCIe 3.0/2.0 x16 (max at x4 mode) *
AMD B450 chipset *1x PCIe 2.0 x16 (x4 mode) *1x PCIe 2.0 x1
RAID řadič: 0, 1, 10
SATA: *6x SATA 6Gb/s ports
M.2: *1x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
USB: *
zadní USB porty ( celkem 6 ) *1x USB 3.2 Gen 2 port(s)(1 x Type-A) *3x USB 3.2 Gen 1 port(s)(2 x Type-A +1 x Type-C) *2x USB 2.0 port(s)(2 x Type-A) *
přední USB porty ( celkem 6 ) *2x USB 3.2 Gen 1 port(s)(2 x Type-A) *4x USB 2.0 port(s)(4 x Type-A)
Interní porty: *1x CPU Fan connector(s) *2x Chassis Fan connector(s) *1x Aura RGB Strip Header *1x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) *2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) *1x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) *1x SPI TPM header *6x SATA 6Gb/s connector(s) *1x S/PDIF out header(s) *1x 24-pin EATX Power connector(s) *1x 8-pin EATX 12V Power connectors *1x Front panel audio connector(s) (AAFP) *1x Clear CMOS jumper(s) *1x System panel connector *1x COM port header *1x Speaker connector
Externí porty: *1x PS/2 keyboard/mouse combo port(s) *1x DVI-D *1x HDMI *1x LAN (RJ45) port(s) *1x USB 3.2 Gen 2 (teal blue)Type-A, *2x USB 3.2 Gen 1 (blue) Type-A *1x USB 3.2 Gen 1 (black) Type-C *2x USB 2.0 *3x Audio jack(s) *1x BIOS FlashBack™ Button(s)
Obsah balení: *User's manual *I/O Shield *2x SATA 6Gb/s cable(s) *1x Supporting DVD *1x TUF Gaming Sticker *1x TUF Certification card(s) *1x M.2 SSD screw package(s)
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Stránka výrobce: https://www.asus.com/Motherboards/TUF-GAMING-B450M-PLUS-II https://www.asus.com/microsite/motherboard/ASUS-motherboards-Win11-ready/ https://www.asus.com/support/FAQ/1046215
